Titanium Satellite Wanted Titanium Satellite ASC1 Dish Mover With Remote

[arlo]

Something like this?

Thread 'DIY Arduino C-Band Dish Mover'

Feb 14, 2020

This thread will be updated over the next few weeks stay tuned....

• KE4EST
• Replies: 13
• Forum: C-BAND Satellite Discussion

•

and this?

Thread 'Arduino DiSEqC Decoder'

Jun 23, 2016

Over the last few weeks I have been working on a DiSEqC decoder using an Arduino board.
The idea started a few years ago when Mike Berg, N0QBH posted his decoder using a PIC chip.
My weapon(micro-controller) of choice is the Atmel series of chips. Most of the Arduino boards have Atmel chips, so their boards are perfect. I built the PIC version from Mike and it worked perfect. However, it did just what it said and decoded the DiSEqC packets and printed the Hex numbers. I wanted more. I wanted it to print out on a display what all those numbers meant.
When I get a print out...

• KE4EST
• Replies: 54
• Forum: Free To Air (FTA) Discussion

•

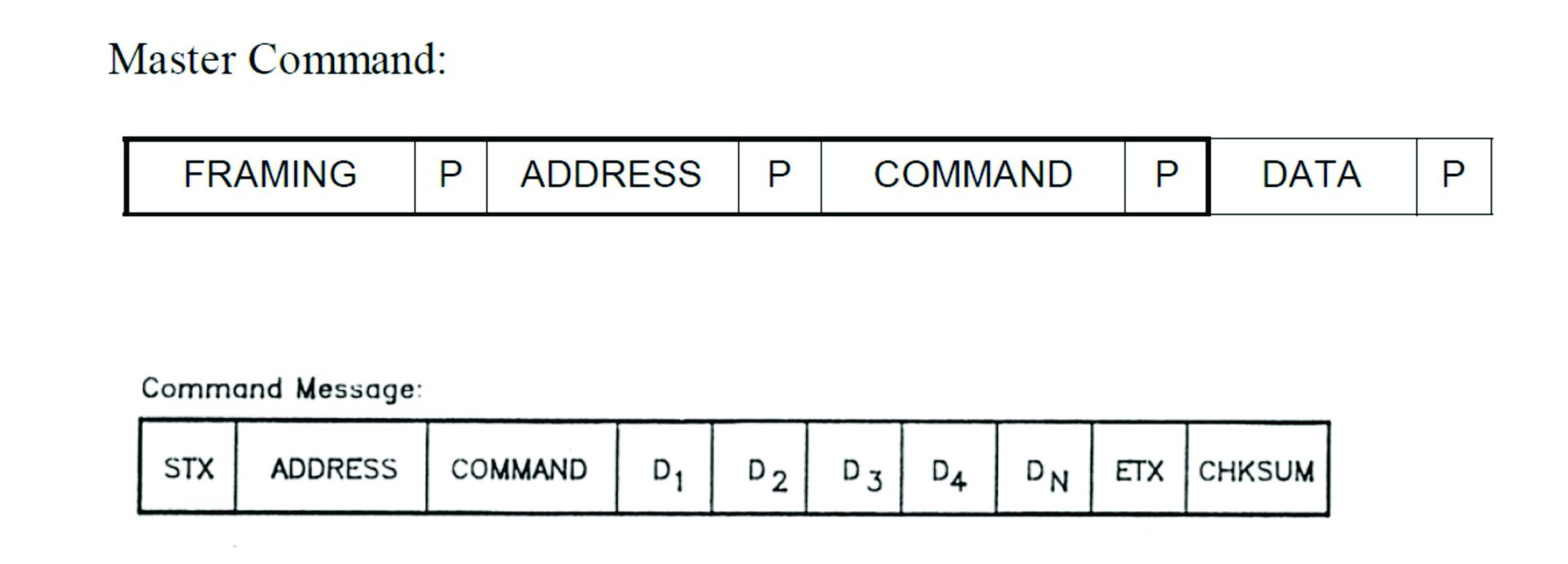

Oh. Further and deeper. And for me frustrating to think of a solution.
1) Receiver LNB port sends command.
2) Just like the ASC1/Vbox, etc. Filtering captures the diseqc data stream from coax pass thru.
3) Data wakes up the Arduino/MCU. Receives the string.
4 Data stream packet is decoded and translated to RCK packet info.
5) All handshaking and acknowledgements are taken care of by the Arduino.
6) Arduino communicates with the receiver to perform necessary duties.
*RCK comms manual states that either a satellite name or satellite position can be used for the go-to command.*
*RCK Az-El controllers could be used with polar mounts for inclined orbit satellites with additional coding.*

Cool or no-cool?



[one_db_compression]

Satellite dish positioner with Diseqc and wifi | project

The satellite positioner stores the position of the satellites in memory and allows you to move the dish to the desired satellite when you change the satellite channel. The advantage of this device is the possibility of controlling and setting the positioner via Wi-Fi. |...

www.electronicwings.com

GitHub - mehdi-adham/ESP8266-Arduino-Library-Diseqc: ESP8266 Arduino Library Satellite Positioner + Diseqc1.2

ESP8266 Arduino Library Satellite Positioner + Diseqc1.2 - mehdi-adham/ESP8266-Arduino-Library-Diseqc

github.com

GitHub - AK-Homberger/Satellite-Dish-Positioner: An automatical satellite dish positioner with ESP8266 D1 Mini, compass and MPU.

An automatical satellite dish positioner with ESP8266 D1 Mini, compass and MPU. - AK-Homberger/Satellite-Dish-Positioner

github.com

There was a time in my past where I would have been all over this sort of homebrewing exercise.

Everyone else's mileage may vary.
